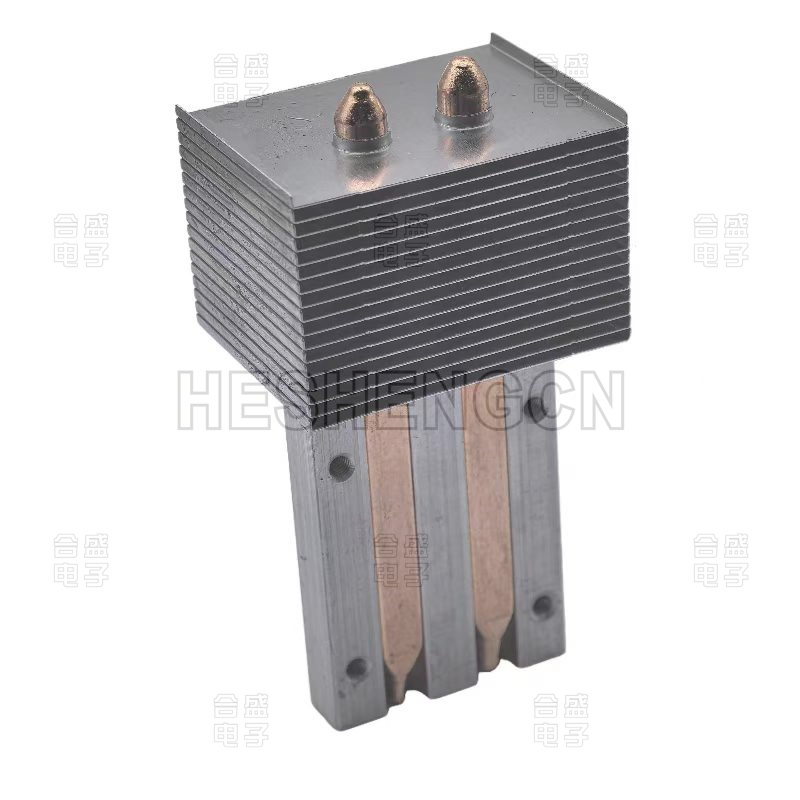

Heat Sink HS8602016

Introduction

Die Casting Heat Sinks are essential for effective Thermal Management in electronic devices. Innovations in fin designs have significantly enhanced the performance of these heat sinks, offering improved cooling efficiency and adaptability. This article examines the impact of advanced fin designs on Die Casting Heat Sink technology, focusing on various design strategies and their benefits.

The Role of Fins in Heat Sinks

Fins:

• Definition: Fins are extended surfaces on heat sinks that increase the surface area available for heat dissipation.
• Purpose: The primary function of fins is to enhance heat transfer from the Heat Sink to the surrounding air or Other cooling media.

Advanced Fin Designs

1. Pin Fin Design

Features:

• Structure: Pin fins are short, cylindrical projections that provide high surface area and enhanced airflow.
• Benefits: The pin fin design increases the convective heat transfer rate by disrupting the airflow, leading to more effective cooling.

Applications:

• Compact Devices: Ideal for applications where space is limited but high cooling performance is required, such as in laptops and smartphones.

2. Extruded Fin Design

Features:

• Structure: Extruded fins are long, continuous fins formed through an extrusion process.
• Benefits: This design allows for a larger surface area and better heat dissipation, especially in applications with high thermal loads.

Applications:

• Industrial Equipment: Suitable for managing heat in large machinery and power electronics where high heat dissipation is necessary.

3. Microchannel Design

Features:

• Structure: Microchannels are small, closely spaced channels integrated into the heat sink.
• Benefits: Microchannels enhance heat transfer by increasing the surface area in direct contact with the cooling medium. They also provide high thermal performance with compact designs.

Applications:

• High-Power Electronics: Used in applications where efficient heat removal is critical, such as in high-performance CPUs and GPUs.

4. Louvered Fin Design

Features:

• Structure: Louvered fins have a series of angled slits or louvers that direct airflow.
• Benefits: This design improves airflow around the fins and enhances convective heat transfer by reducing the boundary layer effect.

Applications:

• Telecommunications: Effective for cooling components in telecommunications equipment where improved airflow is beneficial.

5. V-Shape Fin Design

Features:

• Structure: V-shaped fins create a distinctive pattern that channels airflow effectively.
• Benefits: The V-shape improves heat dissipation by directing air more efficiently across the surface of the heat sink.

Applications:

• Consumer Electronics: Suitable for devices requiring efficient cooling in a compact form factor.

Manufacturing Considerations

1. Die Casting Process

Precision Casting:

• Accuracy: Advanced fin designs require precise die casting to ensure that fins are correctly formed and integrated into the heat sink.
• Quality Control: Rigorous quality control is necessary to maintain consistency and performance in heat sinks with complex fin designs.

2. Material Selection

Thermal Conductivity:

• High-Conductivity Materials: Use materials with high thermal conductivity, such as aluminum or copper, to maximize the effectiveness of advanced fin designs.
• Cost Efficiency: Balance material choice with cost considerations, particularly for high-volume production.

3. Design and Testing

Simulation and Analysis:

• Thermal Simulations: Conduct simulations to evaluate the performance of fin designs under various conditions and optimize their effectiveness.
• Prototype Testing: Build prototypes to test real-world performance and validate design assumptions.

Applications of Advanced Fin Designs

1. Consumer Electronics:

• Smartphones and Tablets: Advanced fin designs improve cooling efficiency in compact devices, enhancing performance and battery life.

2. High-Performance Computing:

• CPUs and GPUs: Efficient fin designs are crucial for managing high thermal loads in modern computing components.

3. Telecommunications:

• Data Centers and Base Stations: Effective fin designs help manage heat in telecommunications infrastructure, ensuring reliable operation.

4. Industrial Equipment:

• Machinery and Power Electronics: Advanced fin designs are used in industrial applications to handle high thermal loads and improve operational efficiency.

Conclusion

Innovations in fin designs for Die Casting Heat Sinks have significantly enhanced cooling efficiency and performance. By incorporating advanced fin structures such as pin fins, extruded fins, microchannels, louvered fins, and V-shaped fins, manufacturers can address the diverse thermal management needs of modern electronic devices. As technology continues to advance, these innovations will play a critical role in improving the performance and reliability of electronic systems across various applications.
