Introduction
As electronic devices become more powerful, the demand for efficient heat management solutions grows. Die Casting Heat Sinks are critical in handling high thermal loads in high-power electronics. This article delves into optimizing Die Casting Heat Sink designs to address the challenges of high-power applications, focusing on material selection, design features, and manufacturing techniques.
Key Design Considerations
1. Material Selection
For high-power electronics, material choice is crucial. The most commonly used materials include:
- Copper: Offers excellent thermal conductivity, ideal for high-power applications. However, it is more expensive and heavier than aluminum.
- Aluminum: Provides good thermal performance at a lower cost and weight. Often used in conjunction with copper in hybrid designs.
- Composite Materials: Advanced composites can offer enhanced thermal performance and reduced weight, but may increase costs.
2. Design Features
Heat Dissipation:

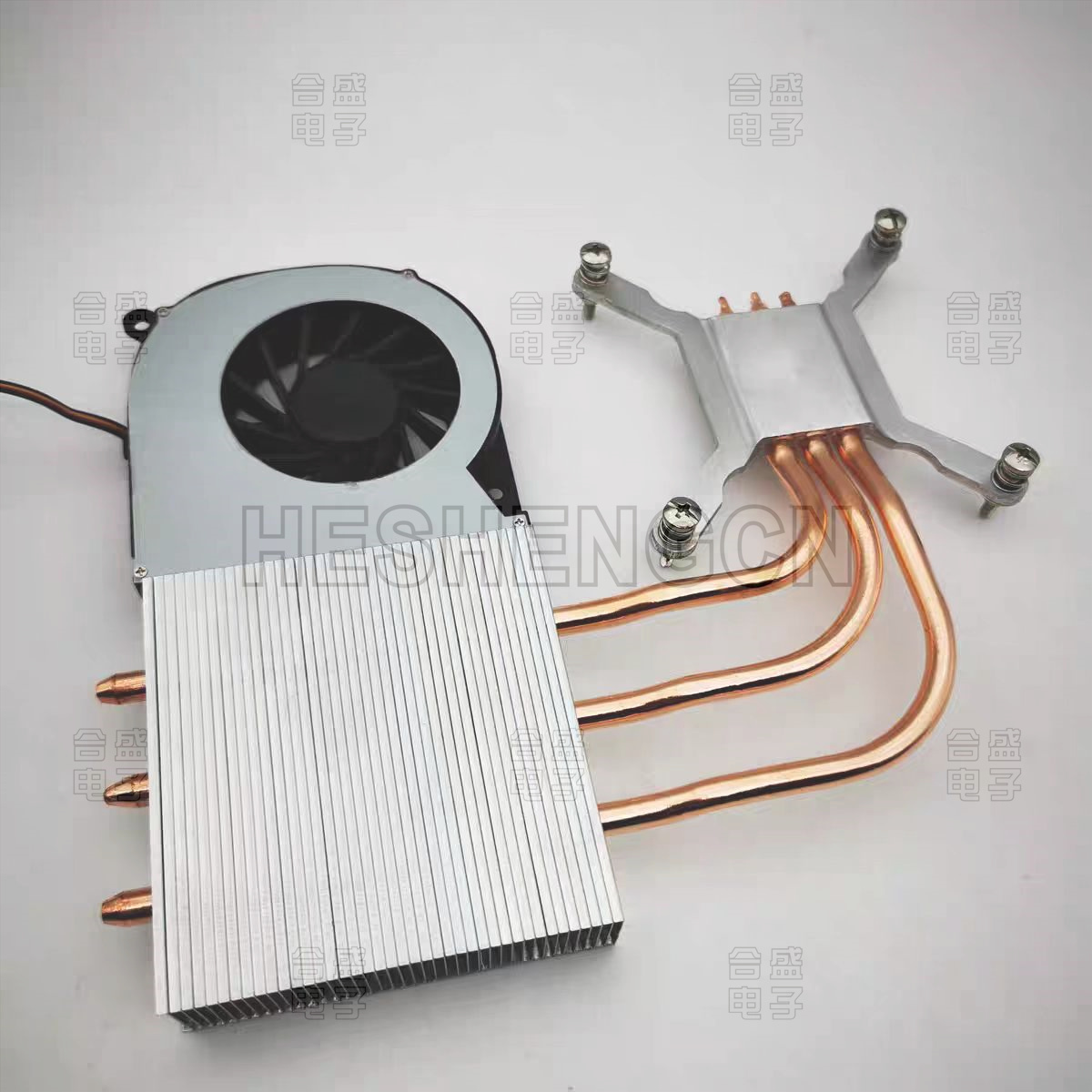

- Fins and Heat Pipes: Adding fins increases surface area for heat dissipation. Heat pipes can be integrated to transfer heat more efficiently from the base to the fins.
- Baseplate Design: A well-designed baseplate ensures efficient heat spreading and uniform thermal contact with the electronic component.
Thermal Interface:
- TIM Integration: Using high-performance thermal interface materials (TIMs) between the Heat Sink and the component enhances heat transfer.
3. Manufacturing Techniques
Die Casting Process:
- Precision Die Casting: Ensures consistent quality and precise dimensions, which is essential for high-power applications.
- Post-Processing: Techniques such as machining and surface coating can further enhance the thermal performance and durability of the heat sink.
4. Thermal Management
Active vs. Passive Cooling:
- Active Cooling: Incorporates fans or pumps to enhance heat dissipation. Useful in extremely high-power applications.
- Passive Cooling: Relies on the natural convection and radiation of heat. Suitable for applications where noise and power consumption need to be minimized.
5. Reliability and Durability
Thermal Cycling:
- Material Selection: Choose materials that can withstand thermal cycling without degrading, ensuring long-term reliability.
- Design Tolerance: Ensure the design can accommodate thermal expansion and contraction without compromising performance.
Environmental Factors:
- Corrosion Resistance: In environments prone to moisture or chemicals, coatings or corrosion-resistant materials should be used.
- Temperature Extremes: Design to handle the expected operating temperature range to prevent failure.
Applications
1. Power Electronics:
- High-power transistors and regulators require robust heat sinks to manage the significant heat generated.
2. Automotive Industry:
- Components in electric vehicles and advanced driver-assistance systems (ADAS) benefit from optimized heat sink designs to manage high thermal loads.
3. Industrial Equipment:
- Machinery with high power density needs effective thermal management to ensure reliability and performance.
4. Telecommunications:
- Base stations and high-frequency RF components require efficient heat sinks to maintain performance and prevent overheating.
Conclusion
Optimizing Die Casting Heat Sink designs for high-power electronics involves careful consideration of material selection, design features, manufacturing techniques, and thermal management strategies. By addressing these factors, engineers can enhance the performance, reliability, and durability of heat sinks, ensuring efficient cooling for high-power electronic applications.
