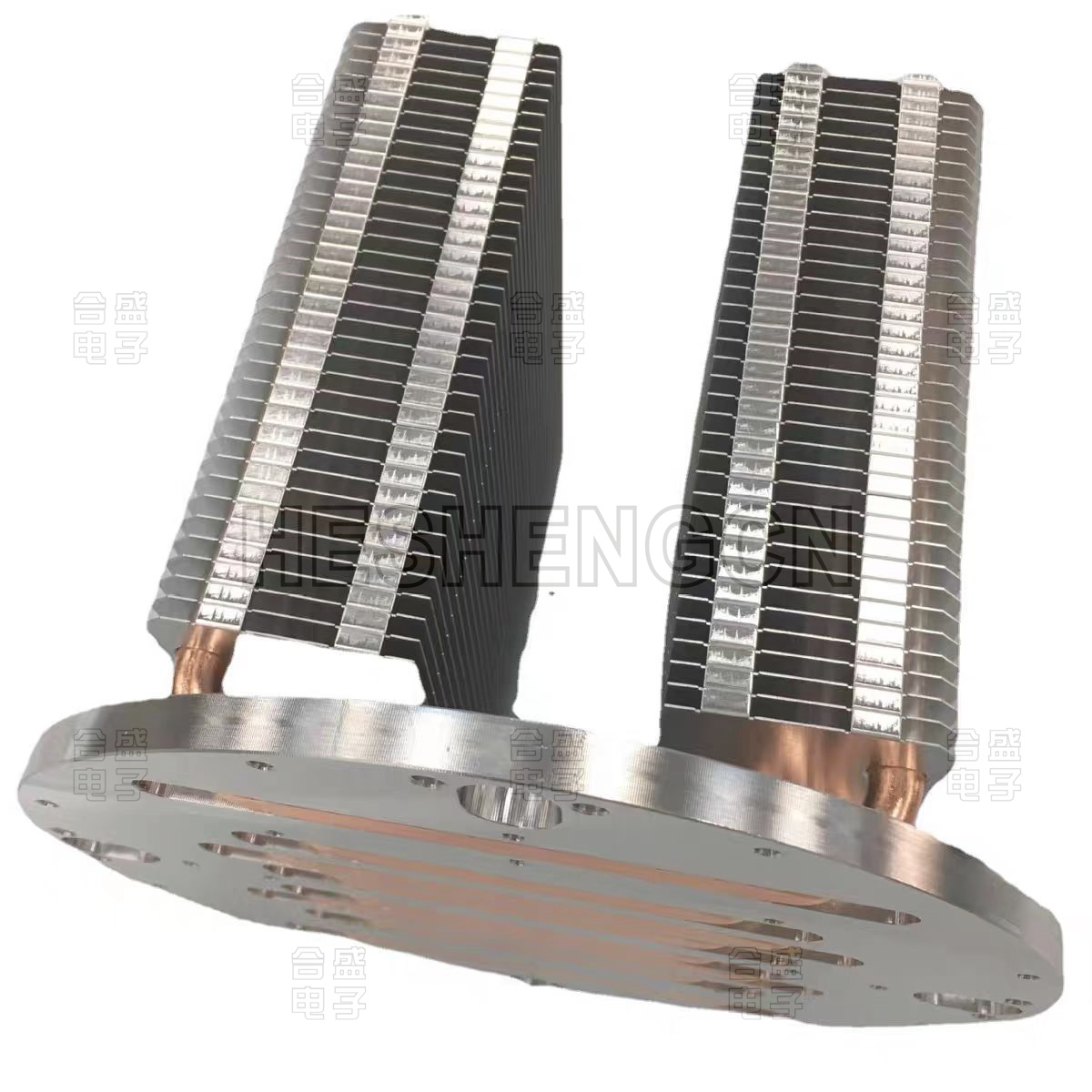

Heat Sink HS8602003

Introduction to Shielding in Electronics

In the rapidly advancing world of electronics, devices are becoming more powerful and compact, which leads to an increase in both heat generation and electromagnetic interference (EMI). While heat sinks are traditionally designed to manage thermal energy, the integration of shielding is becoming increasingly important to protect electronic components from the disruptive effects of EMI. This article will explore the role of shielding in modern Heat Sink Design, discussing how it enhances the functionality of Die Casting Heat Sinks and the importance of properly designed Connectors to ensure efficient operation.

Understanding Electromagnetic Interference (EMI)

Electromagnetic interference, or EMI, is a disturbance that affects an electrical circuit due to either electromagnetic radiation emitted from an external source or unwanted electromagnetic signals generated within the device itself. EMI can disrupt the operation of electronic circuits, causing malfunctions, data corruption, or even complete failure of the system.

In a Computer, for example, EMI can originate from various components such as the CPU, GPU, or power supply. These components operate at high frequencies and can emit electromagnetic waves that interfere with each Other or with nearby sensitive components. This is where shielding becomes essential, as it helps block or reduce the impact of these unwanted electromagnetic signals.

The Concept of Shielding in Heat Sinks

Shielding in the context of heat sinks involves the use of conductive or magnetic materials to create barriers that block or absorb electromagnetic interference. When incorporated into Heat Sink design, shielding serves a dual purpose: it manages the heat generated by electronic components while also protecting them from EMI.

Heat sinks, especially Die Casting Heat Sinks, can be designed with integrated shielding to offer both Thermal Management and EMI protection. This integration is particularly important in high-performance computing environments, telecommunications, and automotive electronics, where the reliability and stability of electronic systems are paramount.

Shielding Materials and Techniques

The choice of materials and techniques used for shielding in heat sinks is crucial to achieving effective EMI protection without compromising thermal performance. Common materials used for shielding include:

1. Copper and Aluminum: These metals are often used for their high electrical conductivity, which allows them to effectively block electromagnetic waves. Copper is especially effective but can be more expensive, so aluminum is often used as a cost-effective alternative.

2. Mu-Metal: This is a nickel-iron alloy known for its high magnetic permeability, making it particularly effective at shielding against low-frequency magnetic fields. Mu-metal is often used in specialized applications where magnetic shielding is critical.

3. Conductive Coatings: In some cases, heat sinks may be coated with conductive materials to enhance their shielding properties. These coatings can be applied using various methods, such as electroplating or vapor deposition.

4. Dielectric Materials: While not conductive, dielectric materials can be used in conjunction with conductive shielding to block electric fields while allowing magnetic fields to pass through. This is useful in applications where specific types of EMI need to be mitigated.

Designing Heat Sinks with Integrated Shielding

Incorporating shielding into heat sink design requires careful consideration of both the thermal and electromagnetic properties of the materials used. The design process typically involves the following steps:

1. Thermal Analysis: The first step is to perform a thermal analysis to determine the heat dissipation requirements of the electronic components. This helps in selecting the appropriate heat sink design, including the size, shape, and material.

2. EMI Analysis: Once the thermal requirements are established, an EMI analysis is conducted to identify potential sources of interference and determine the level of shielding needed. This analysis helps in selecting the shielding materials and designing the layout of the shield.

3. Material Selection: Based on the thermal and EMI analyses, materials are chosen that provide the best balance of thermal conductivity and shielding effectiveness. For Die Casting Heat Sinks, aluminum alloys are often preferred due to their good thermal conductivity and cost-effectiveness.

4. Integration of Shielding: The shielding is then integrated into the heat sink design. This can be done by embedding conductive materials within the heat sink structure, adding a conductive coating, or designing the heat sink itself to act as a shield. In Die Casting Heat Sinks, the mold can be designed to incorporate shielding elements directly into the cast structure.

5. Connector Design: Connectors play a critical role in ensuring that the heat sink, with its integrated shielding, is properly attached to the electronic components. These connectors must be designed to maintain the integrity of the shield, preventing EMI from entering or escaping through connection points.

Benefits of Shielding in Heat Sink Design

Integrating shielding into heat sink design offers several benefits:

1. Improved System Reliability: By protecting sensitive components from EMI, shielding helps ensure that electronic systems operate reliably and without interruption.

2. Enhanced Thermal Management: Shielding can be designed in a way that complements the thermal management function of the heat sink, ensuring that both heat and electromagnetic interference are effectively managed.

3. Space and Cost Efficiency: Combining shielding and heat dissipation in a single component reduces the need for additional EMI protection measures, saving space and potentially lowering costs in compact or budget-sensitive applications.

4. Regulatory Compliance: Many electronic devices must comply with stringent EMI regulations. Integrated shielding in heat sinks can help devices meet these regulatory requirements without the need for additional EMI mitigation components.

Applications of Shielded Heat Sinks

Shielded heat sinks are used in various applications where both thermal management and EMI protection are critical, including:

• Telecommunications Equipment: Base stations, routers, and other devices that operate at high frequencies and in close proximity to other electronics.
• Automotive Electronics: Electronic control units (ECUs) and other automotive systems that are exposed to both thermal and electromagnetic stresses.
• High-Performance Computing: Servers, workstations, and other high-performance computers where heat generation and EMI can be significant issues.
• Medical Devices: Sensitive Medical Equipment that requires both precise thermal management and protection from external interference.

Conclusion

Shielding plays an increasingly important role in the design of modern heat sinks, particularly as electronic devices become more powerful and susceptible to EMI. By integrating shielding into Die Casting Heat Sinks, designers can create solutions that not only manage heat effectively but also protect electronic components from the potentially damaging effects of electromagnetic interference. As technology continues to advance, the demand for heat sinks with integrated shielding will likely grow, driving further innovation in materials and design techniques.
