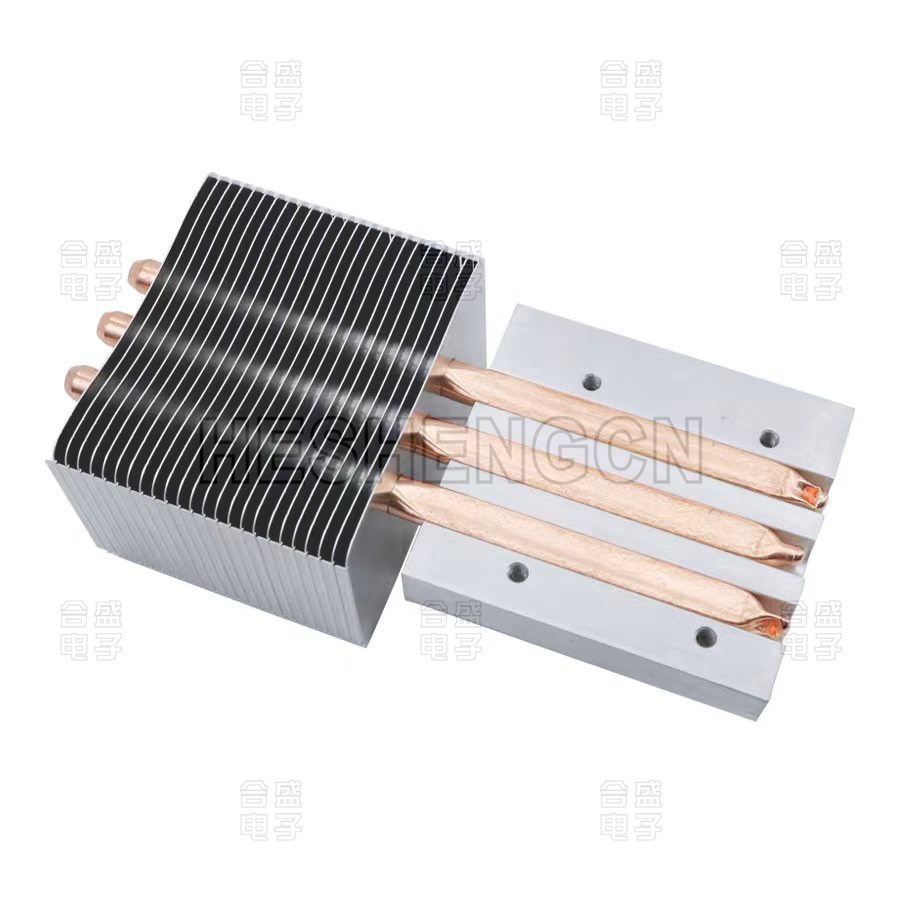

Heat Sink HS8602006

Introduction to Shielding in Thermal Management

In electronic devices, managing heat effectively is critical for ensuring performance and longevity. However, with the increasing complexity and power density of modern electronics, managing electromagnetic interference (EMI) has become just as important. Die Casting Heat Sinks, known for their durability and efficiency in heat dissipation, are being designed with integrated shielding to address EMI concerns. This article explores various shielding strategies in Die Casting Heat Sinks, discussing how to balance thermal management with electromagnetic protection, and the role of Connectors in maintaining both functions.

Understanding Electromagnetic Interference (EMI) in Electronics

Electromagnetic interference (EMI) refers to the disturbance that electrical circuits experience due to electromagnetic fields from external sources or from Other components within the device. EMI can lead to a variety of issues, including data corruption, signal loss, and even complete device failure. As electronic components operate at increasingly higher frequencies, they become more susceptible to EMI, necessitating effective shielding solutions.

Shielding is crucial for protecting sensitive electronic components from both internal and external electromagnetic disturbances. By integrating shielding directly into the Heat Sink Design, engineers can ensure that both thermal and electromagnetic management are optimized, particularly in environments where reliability is critical, such as in telecommunications, automotive electronics, and high-performance computing.

Shielding Techniques in Die Casting Heat Sinks

1. Conductive Shielding

   Conductive shielding involves the use of materials that conduct electricity, such as aluminum or copper, to block electromagnetic fields. In Die Casting Heat Sinks, this type of shielding can be integrated into the structure by casting the Heat Sink with materials that inherently offer EMI protection. Aluminum, commonly used in die-cast heat sinks, provides a good balance of thermal conductivity and EMI shielding due to its electrical conductivity.

   The heat sink's design can include specific geometries that enhance its ability to block EMI. For instance, thickened walls or additional metal layers can be incorporated in areas most exposed to electromagnetic fields, ensuring that the heat sink not only dissipates heat effectively but also serves as a barrier to electromagnetic radiation.

2. Magnetic Shielding

   Magnetic shielding is used to block or redirect magnetic fields that can cause interference in electronic circuits. Materials with high magnetic permeability, such as mu-metal, are often used for this purpose. While mu-metal is not commonly used in the die-casting process due to its properties, it can be applied as a coating or as an additional layer within the heat sink design.

   In applications where magnetic fields are a significant concern, such as in medical devices or sensitive instrumentation, integrating magnetic shielding with the die-cast heat sink can provide comprehensive EMI protection without compromising thermal performance. This may involve using a combination of materials, where the main body of the heat sink is made from a thermally conductive material like aluminum, and specific regions are enhanced with magnetic shielding materials.

3. Multi-Layer Shielding

   Multi-layer shielding combines different materials and layers to address both electric and magnetic fields. This approach can be particularly effective in Die Casting Heat Sinks, where the casting process allows for the integration of multiple materials within a single component.

   For example, a heat sink might be designed with an outer layer of high-conductivity aluminum for thermal management and conductive shielding, while an inner layer of mu-metal or other magnetic shielding material addresses magnetic fields. This layered approach allows the heat sink to protect against a broader range of EMI sources, making it suitable for high-performance applications where both types of interference are present.

4. Faraday Cage Design

   A Faraday cage is an enclosure made of conductive material that blocks external static and non-static electric fields. In heat sink design, a Faraday cage can be created by casting the heat sink in such a way that it forms a continuous conductive enclosure around the electronic component.

   This strategy is particularly effective for devices that require complete EMI shielding, such as sensitive communication equipment or military electronics. The heat sink itself acts as a Faraday cage, ensuring that no electromagnetic fields penetrate or escape the protected area, while still allowing for efficient heat dissipation.

Integration of Shielding with Connectors

The integration of shielding into Die Casting Heat Sinks is only effective if the connectors used to attach the heat sink to the electronic component maintain the shielding's integrity. Connectors must ensure continuous electrical continuity and mechanical stability without compromising the heat sink's thermal performance.

1. Conductive Connectors

   Connectors that maintain electrical conductivity between the heat sink and the electronic component are essential for effective EMI shielding. These connectors ensure that the shielding provided by the heat sink is continuous, preventing gaps that could allow electromagnetic fields to penetrate.

   Conductive connectors are often made from materials like copper or aluminum, which offer both good electrical conductivity and mechanical strength. In some designs, these connectors may also be coated with additional conductive materials to enhance their EMI shielding properties.

2. Grounding

   Proper grounding is a critical aspect of EMI shielding. The connectors must ensure that the shielded heat sink is grounded, allowing any absorbed electromagnetic energy to be safely dissipated. This prevents the buildup of electromagnetic fields that could otherwise cause interference or damage to the electronic component.

   Grounding connectors are typically designed to provide a reliable connection to the device's ground plane, ensuring that the shielding remains effective throughout the device's operation.

3. Thermal and EMI Co-Design

   In applications where both thermal management and EMI protection are critical, the design of connectors must consider both functions simultaneously. This involves selecting materials and design features that support both effective heat transfer and electromagnetic shielding.

   For example, connectors might be designed with integrated heat pipes or thermal pads to enhance heat transfer while maintaining the shielding's integrity. The design must also account for thermal expansion and mechanical stresses, ensuring that the connection remains stable under varying operating conditions.

Challenges in Shielding Design for Die Casting Heat Sinks

Designing effective shielding for Die Casting Heat Sinks presents several challenges:

1. Material Selection: The choice of materials for shielding must balance thermal conductivity with EMI protection. Materials that are excellent for thermal management, such as aluminum, may not provide sufficient EMI shielding on their own and may need to be combined with other materials.

2. Manufacturing Complexity: Integrating shielding into a die-cast heat sink can increase the complexity of the manufacturing process. This may involve additional steps, such as coating or layering materials, which can increase production costs and time.

3. Size and Weight Considerations: The addition of shielding materials can increase the size and weight of the heat sink. In applications where space and weight are critical, such as in portable electronics or automotive systems, this must be carefully managed to avoid compromising the device's design.

4. Thermal Expansion and Stress: The materials used for shielding and the heat sink may have different coefficients of thermal expansion. This can lead to mechanical stresses during operation, which could affect the performance of both the heat sink and the shielding. Designing for thermal compatibility is crucial to ensure long-term reliability.

Applications of Shielded Die Casting Heat Sinks

Shielded Die Casting Heat Sinks are used in various applications where both thermal management and EMI protection are critical:

• Telecommunications: Devices such as base stations, routers, and satellite communication systems that operate in high-frequency environments and require reliable EMI shielding.
• Automotive Electronics: Electronic control units (ECUs), sensors, and infotainment systems in vehicles that are exposed to both thermal and electromagnetic stresses.
• Medical Devices: Equipment like MRI machines, diagnostic devices, and patient monitoring systems that must be protected from external EMI while managing heat effectively.
• High-Performance Computing: Servers, data centers, and other computing environments where high power densities generate significant heat and EMI.

Conclusion

The integration of shielding into Die Casting Heat Sinks is a critical strategy for managing both heat and electromagnetic interference in modern electronic devices. By employing techniques such as conductive shielding, magnetic shielding, and multi-layer designs, engineers can create heat sinks that offer comprehensive protection while maintaining efficient thermal management. The role of connectors is also vital in ensuring that the shielding remains effective throughout the device's lifecycle. As electronic devices continue to evolve, the demand for advanced shielding solutions in heat sink design will grow, driving innovation in materials and manufacturing processes. Balancing thermal and electromagnetic protection will remain a key challenge and opportunity in the design of future electronic systems.
