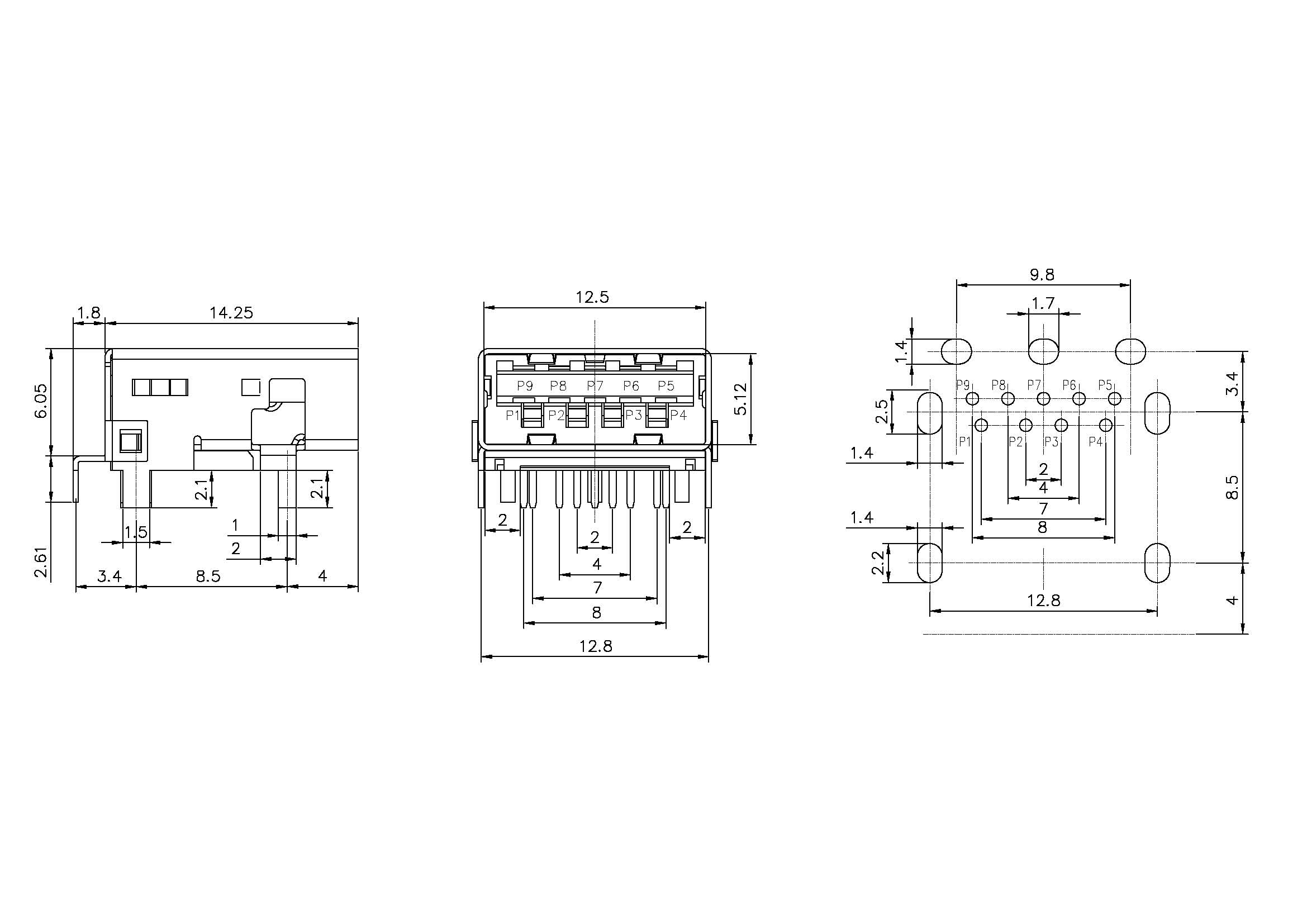

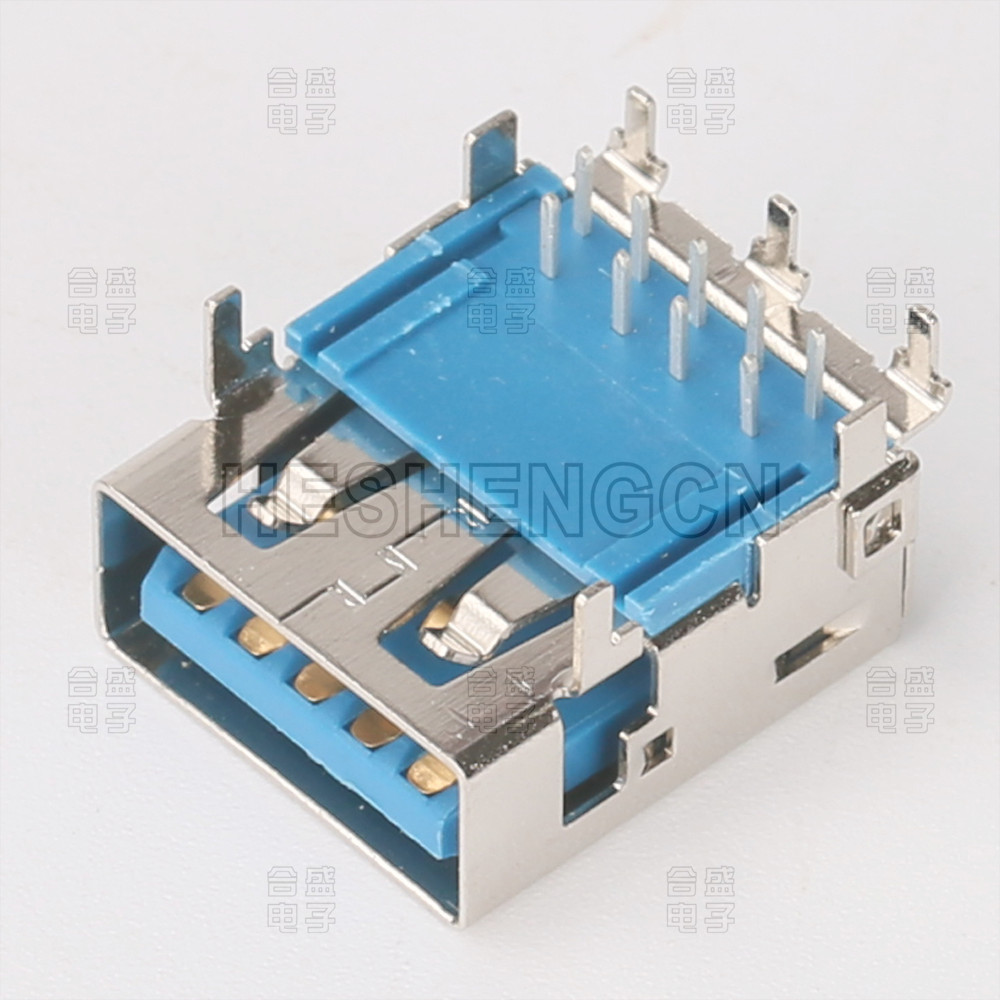

Universal Serial Bus Connector USB-901R

USB Connectors: An Overview

USB (Universal Serial Bus) connectors have become an integral part of modern electronic devices, facilitating data transfer and power supply across a wide range of applications. Since their inception, USB connectors have evolved significantly, with improvements in speed, power delivery, and design. This essay will explore the structure, functionality, and applications of USB connectors, with a particular focus on the incorporation of heatsink and shielding technologies.

Basic Structure of USB Connectors

USB connectors are designed to provide a reliable and efficient means of connecting devices. Their basic structure consists of a metal shell, contacts, and an insulator. The metal shell serves multiple purposes: it provides mechanical protection, aids in alignment during connection, and offers electrical shielding to reduce electromagnetic interference (EMI). Shielding is crucial in maintaining the integrity and stability of data transmission by preventing external electromagnetic fields from disrupting the signal.

Heatsink Integration

As the demand for higher power delivery through USB connectors has increased, especially with the advent of USB 3.0, USB 3.1, and USB 3.2 standards, the need for effective heat management has become paramount. High-power USB connectors can deliver up to 5V at 3A or more, leading to significant heat generation. To address this, heatsink technology has been integrated into USB Connector designs.

Heatsinks are typically made from materials with high thermal conductivity, such as aluminum or copper. These components are strategically placed within the Connector to dissipate heat away from critical areas, ensuring that the connector remains within safe operating temperatures. By effectively managing heat, heatsinks help to prolong the lifespan of the USB connector and maintain its performance even under high power loads.

Shielding for EMI Protection

Electromagnetic interference (EMI) can pose a serious challenge to the performance of electronic devices, potentially causing data transmission errors and signal degradation. To mitigate these issues, USB connectors employ various shielding techniques. Shielding involves enclosing the connector and its cables in conductive materials that block or redirect electromagnetic fields.

USB connectors typically use two levels of shielding: external and internal. The external shielding is provided by the metal shell of the connector, which acts as a barrier to external electromagnetic fields. Internal shielding involves wrapping the data lines within the connector with conductive materials, such as metal foils or braided wire, to further reduce interference. This dual-layer shielding ensures robust protection against EMI, enhancing the reliability and stability of data transfer.

Types of USB Connectors

USB connectors come in various types, each designed to meet specific needs and applications. The most common types include:

Type-A

Type-A USB connectors are the standard rectangular connectors found on most computers, TVs, and chargers. They have been used since the inception of USB technology and support data transfer speeds ranging from USB 1.1 (12 Mbps) to USB 3.1 (10 Gbps).

Type-B

Type-B USB connectors are square-shaped with a beveled top and are commonly used in peripheral devices such as printers and scanners. Like Type-A connectors, they support a range of USB standards from 1.1 to 3.1.

Mini and Micro USB

Mini and Micro USB connectors are smaller versions of standard USB connectors, designed for portable devices like cameras and smartphones. Mini-USB connectors were widely used before being largely replaced by the more compact Micro-USB connectors, which have become the standard for many mobile devices.

USB Type-C

USB Type-C is the latest iteration of USB connectors, known for its small size, reversible design, and high data transfer rates. Type-C connectors support USB 3.1 and USB 3.2 standards, offering speeds up to 20 Gbps. They also support high power delivery, capable of providing up to 100W, making them suitable for charging laptops and Other power-hungry devices. The versatility and robust performance of Type-C connectors have led to their rapid adoption as the new standard for many modern devices.

Applications of USB Connectors

USB connectors are ubiquitous in today's technology landscape, serving a wide array of applications across various industries. In consumer electronics, they are used for charging and data transfer in devices such as smartphones, tablets, laptops, and gaming consoles. In the automotive industry, USB connectors provide power and connectivity for infotainment systems and diagnostic tools. In industrial settings, they facilitate communication between machinery and control systems.

The integration of heatsink and shielding technologies in USB connectors has further expanded their applicability. For instance, in high-performance computing environments, where data integrity and Thermal Management are critical, USB connectors with advanced shielding and heat dissipation features ensure reliable operation under demanding conditions.

Conclusion

USB connectors have undergone significant advancements since their introduction, evolving to meet the increasing demands for faster data transfer, higher power delivery, and improved reliability. The incorporation of heatsink and shielding technologies has played a crucial role in enhancing the performance and durability of USB connectors. As technology continues to advance, USB connectors will undoubtedly remain a vital component in the ever-growing ecosystem of electronic devices, providing users with efficient, reliable, and versatile connectivity solutions.
